    New weaving technique on dobby loom

    Part 1
    Weave enlargement

    Attention, please : in this store files are only for handloom - tie-up and treadling except one for industry at the end of the store.
    WIF-software needed
    Unlike handloom, industrial loom offers a lot of weaving ways on the same drawing-in (threading) like :
     Self patterned tabby
     1-weft patterned tabby
     2-weft Taqueté
    2-weft Gros de Tours

    So it is possible to get
    1000 patterns with the same drawing-in on 14 shafts
    500 patterns with the same drawing-in on 10 shafts
    200 patterns with the same drawing-in on 8 shafts

     Attention, weft patterned tabby, Taqueté and Gros de Tours :  weft density (filling) 15% more than self patterned tabby


    Some examples on the same drawing-in for industry:
    Cards, pegplan, for digital devises

    8 shafts
    For clothing - shirt
    Hintschich #72006
    Primary weave x 28
    self patterned tabby
    max warp and weft floats : 5



    For clothing - jacket and furnishing
    1-weft patterned tabby
    no warp float max weft float : 5

    For furnishing - rug - carpet
    2-weft Taqueté
    no float
    only on positive dobby machine and two beams

    For furnishing
    2-weft Gros de Tours
    warp float : 10   weft float : 5


    For clothing - shirt
    Griswold #2665
    Primary weave x 28
    self patterned tabby
    max warp and weft floats : 5


    For clothing - jacket and furnishing
    1-weft patterned tabby
    no warp float max weft float : 5

    For furnishing - rug - carpet
    2-weft Taqueté
    no float
    only on positive dobby machine and two beams

    For furnishing
    2-weft Gros de Tours
    warp float : 10   weft float : 5


    For clothing - shirt

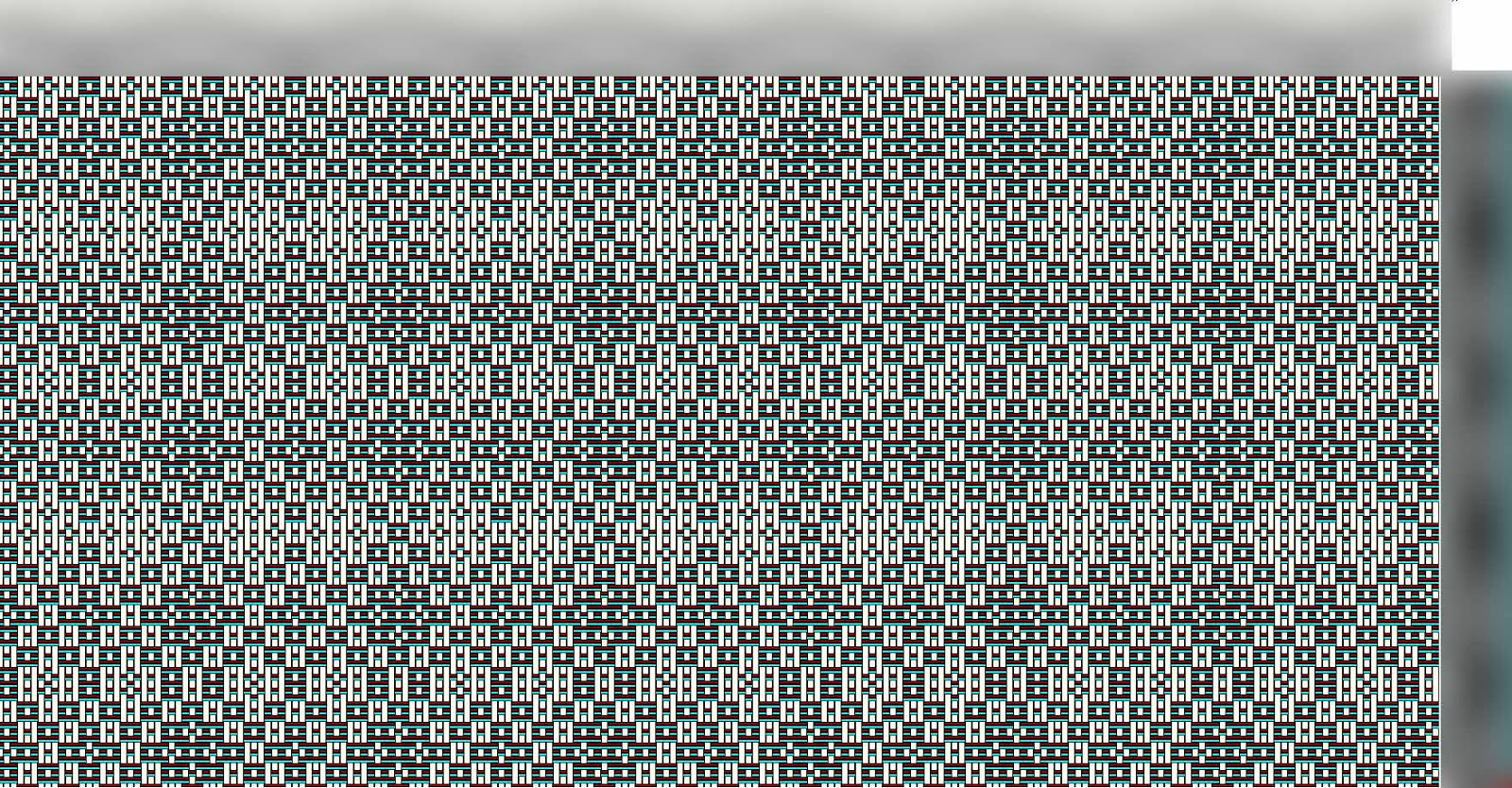

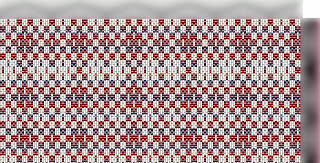

    HCB #100000b
    Primary weave x 28
    self patterned tabby
    max warp and weft floats : 5



    For clothing - jacket and furnishing
    1-weft patterned tabby
    no warp float max weft float : 5


    For furnishing - rug - carpet
    2-weft Taqueté
    no float
    only on positive dobby machine and two beams

    For furnishing
    2-weft Gros de Tours
    warp float : 10   weft float : 5


    For furnishing - home textile
    3 patterns on honeycomb background with 8 shafts
    on the same drawing-in (many possibilities)


    8 shafts
    For clothing
    L. Serrure #34982
    Primary weave x 6
    self patterned tabby
    max warp and weft floats : 5


    For clothing and furnishing
      1-weft patterned tabby
    no warp float max weft float : 5

    For furnishing
    2-weft Taqueté
    no float



    For furnishing
    2-weft Gros de Tours
    warp float : 12   weft float : 5


    For clothing
    L. Serrure #34983
    Primary weave x 6
    self patterned tabby
    max warp and weft floats : 5


    For clothing and furnishing
    1-weft patterned tabby
    no warp float max weft float : 5


    For furnishing
    2-weft Taqueté
    no float

    For furnishing
    2-weft Gros de Tours
    warp float : 12   weft float : 5


    For clothing
    L. Serrure #34984
    Primary weave x 6
    self patterned tabby
    max warp and weft floats : 5


    For clothing and furnishing
    1-weft patterned tabby
    no warp float max weft float : 5



    For furnishing
    2-weft Taqueté
    no float



    For furnishing
    2-weft Gros de Tours
    warp float : 12   weft float : 5


    L. Serrure 1385
    Handweaving.net #36276
    Pointed  threading
    16 shafts  30 threading 36 treadling

    Our new technque to enlarge by 6
     L. Serrure 1385
    Handweaving.net #36276
    Pointed look threading
    18 shafts 90 threading  72 treadling or picks
    Warp floats : 16   Weft floats : 5
    Reverse side








    L. Serrure  2053
    Handweaving.net #36944
    Pointed  threading
    20 shafts  20 threading 32 treadling



    Our new technique to enlarge by 6
     L. Serrure 2053
    Handweaving.net #36944
    Pointed look threading
    22 shafts 60 threading  64 treadling or picks
    Warp floats : 10   Weft floats : 5









    L. Serrure  2103
    Handweaving.net #36994
    Pointed  threading
    20 shafts  20 threading 40 treadling or picks


    Our new technque to enlarge by 6
     L. Serrure 2103
    Handweaving.net #36994
    Pointed look threading
    22 shafts 60 threading  80 treadling or picks
    Warp floats : 10   Weft floats : 5










    L. Serrure  2149
    Handweaving.net #37040
    Pointed  threading
    18 shafts  38 threading 20 treadling or picks


    Our new technique to enlarge by 6
     L. Serrure 2149
    Handweaving.net #37040
    Pointed look threading
    22 shafts 114 threading 40 treadling or picks
    Warp floats : 8   Weft floats : 5


    with 10, 14, 18 and 22 shafts

    With self patterned Tabby background
    Taffetas liseré
    "Atlas de 4000 armures" L. Serrure
    Enlargement by 6 of the primary weave
    1343 WIFs (weaves)
